Fire Fighting Equipments

• Application
• Server rooms, control panels, data centers, and electrical cabinets

• Capacity
• Depends on protected area size and agent type

• Coating Type
• Corrosion resistant powder coating

• Connectivity Type
• Wired (integrated with fire alarm system)

• Control Type
• Electronic Control Panel with Manual and Auto Modes

• Coverage Area
• Variable; typically 5-100 sq. meters per module

• Diameter
• Standard system pipe diameter: 1/2 to 2 inches

• Energy Efficiency Rating
• Low energy consumption (standby operation)

• Features
• Automatic detection, rapid suppression, minimal residue, system status indication

• Fire Class
• A, B, C & Electrical fires

• Fire Extinguisher Type
• Clean agent, CO2, or FM200 based on requirement

• Installation Type
• Wall mounted or integrated panel installation

• Max Flow Rate
• Designed as per extinguishing agent and protected risk

• Mounting Type
• Vertical or skid mounted

• Operating Pressure
• Up to 60 bar (varies by system design)

• Pressure
• Stored pressure, up to 60 bar (870 psi) depending on system

• Shape
• Cylindrical vessel/tank

• Technology
• Automatic Fire Detection and Suppression

• Voltage
• 220-240V AC

• Working Temperature
• -30C to +55C (approx.)

• Application
• Vehicle Engine Compartment Fire Protection

• Capacity
• 5 kg to 12 kg cylinder sizes (configurable)

• Coating Type
• Corrosion-resistant powder coating

• Connectivity Type
• Wired to vehicle emergency alert system

• Control Type
• Automatic Electronic Control with Manual Override

• Coverage Area
• Engine Compartment (typically 2-8 sq. meters depending on model)

• Diameter
• Custom based on vehicle type, commonly 8-25 mm nozzle/pipe

• Energy Efficiency Rating
• Not Applicable/Passive system

• Features
• Automatic operation, rapid suppression, minimal engine damage, minimal maintenance

• Fire Class
• Class A, B, C (suitable for solid, liquid, and electrical fires)

• Fire Extinguisher Type
• Clean Agent or Dry Powder Cylinder Type

• Installation Type
• Fixed in engine bay/compartment

• Max Flow Rate
• Varies based on cylinder, typically 2-10 kg/sec

• Mounting Type
• Chassis- or frame-mounted brackets

• Operating Pressure
• 15-25 bar

• Pressure
• Stored pressure type, generally 15-25 bar

• Shape
• Cylindrical Cylinder with Piping Network

• Technology
• Automatic Detection and Activation

• Voltage
• 12V/24V DC

• Working Temperature
• -20C to +55C

• Application
• Commercial and industrial fire protection for sensitive equipment and areas

• Capacity
• 9 kg

• Coating Type
• Red corrosion-resistant powder coating

• Control Type
• Manual squeeze grip operation

• Coverage Area
• Suitable up to approx. 3-4 m discharge range

• Diameter
• Approx. 180-200 mm

• Features
• Non-conductive, leaves no residue, ozone friendly, rapidly evaporates

• Fire Class
• Class A, B, C

• Fire Extinguisher Type
• Clean Agent (HCFC, HFC or equivalent)

• Installation Type
• Wall mounted

• Max Flow Rate
• Not specified (dependent on agent and pressure)

• Mounting Type
• Bracket/Wall mounted

• Operating Pressure
• 15-18 bar

• Pressure
• Stored at 15-18 bar (service pressure)

• Shape
• Cylinder

• Technology
• Stored pressure, Clean Agent discharge

• Working Temperature
• -20C to +55C

• Application
• Fire Suppression in Buildings

• Capacity
• Continuous (based on water supply)

• Coating Type
• Chrome Plated

• Connectivity Type
• Threaded Connection

• Control Type
• Automatic

• Coverage Area
• 9-12 m2

• Diameter
• 15 mm (1/2 inch)

• Features
• Corrosion Resistant, Uniform Spray Pattern, Fast Response

• Fire Class
• Class A and B

• Fire Extinguisher Type
• Water Sprinkler

• Installation Type
• Ceiling Mounted

• Max Flow Rate
• 80-115 L/min (depending on pressure)

• Mounting Type
• Pendant Ceiling Mounted

• Operating Pressure
• 0.35-1.2 MPa

• Pressure
• 0.5-1.2 MPa

• Shape
• Pendent

• Technology
• Glass Bulb Thermosensitive Activation

• Voltage
• Not Required (Mechanical Activation)

• Working Temperature
• 68C (standard bulb); Options Available

• Application
• Suitable for electrical, solid (wood, paper), and liquid fires

• Capacity
• 1 Kg, 2 Kg, 4 Kg, 6 Kg, 9 Kg (varies as per model)

• Coating Type
• Epoxy Powder Coated

• Connectivity Type
• Standalone

• Control Type
• Manual

• Coverage Area
• Depends on size and discharge range, typically 2-3 m2 for smaller units

• Diameter
• Approx. 140 mm (varies with capacity)

• Features
• IS:15683 Certified, User Friendly, CE Marked, BIS/ISI Marked, Refillable, Pressure Gauge

• Fire Class
• Class A, B, C & Electrical

• Fire Extinguisher Type
• ABC Powder

• Installation Type
• Wall Mounted

• Mounting Type
• Wall Mounted

• Operating Pressure
• Approx. 15 Bar

• Pressure
• Stored Pressure type, up to 15 Bar

• Shape
• Cylinder

• Technology
• Stored Pressure Dry Powder

• Working Temperature
• -30C to +55C

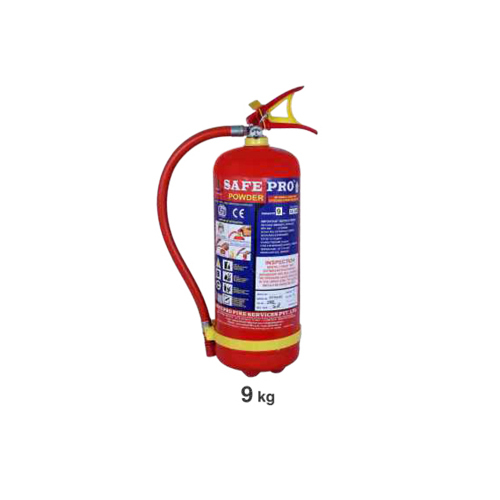

• Application
• For extinguishing Class A, B, and C fires-suitable for industrial, commercial, and residential use

• Capacity
• 9 kg

• Coating Type
• Corrosion-resistant powder coating

• Control Type
• Manual lever operated

• Coverage Area
• Up to 3 square meters (typical for 9kg unit)

• Diameter
• Approx. 180 mm

• Features
• Easy to operate, Maintenance-friendly, Highly efficient against multiple fire classes, Pressure gauge included

• Fire Class
• A, B, C & Electrical fires

• Fire Extinguisher Type
• ABC Dry Powder, Stored Pressure

• Installation Type
• Wall mounting (with bracket)

• Mounting Type
• Wall mounted

• Operating Pressure
• 15 Bar (nominal)

• Pressure
• 15 Bar (approx normal working pressure)

• Shape
• Cylindrical

• Technology
• Stored Pressure Type

• Working Temperature
• -5C to +55C
